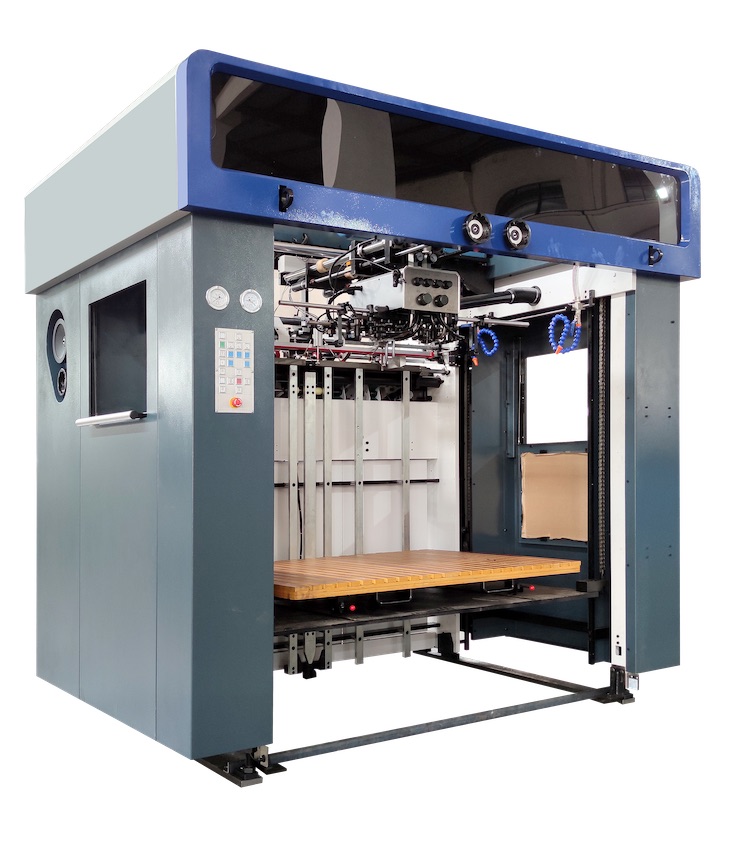

Paper Feeder Configuration
Company Name
Contact
Contact Number
Material maximum format (width & length)
Minimum material width (width & length)
Material Thickness Range
Material	Cardboard □Thin paper □Grey board □Corrugated □Plastic sheet □Other Remark:
Conveying speed (sheets/hour or m/min)
Feeder requirements	□Aberration correction □ Manual up and down □ Manual front and rear □ Manual left and right □Automatic up and down □Automatic front and rear Remark:
Paper table correction	□Manual correction □Automatic correction □No correction Remark:
Side stop	□ Manual adjustment of the top side stop □ Manual adjustment of the full length side stop □Automatic adjustment of top side stop Remark:
Double sheet detection	□ Required □ Not required Remark:
Paper feed table	Paper belt: □ Ordinary paper belt □ Negative pressure paper belt Angle: □ Horizontal □ Inclination □ Change with the host Paper table support: □Gas spring □Fixed Remark:
Press box	□Manual □Quick adjustment □Automatic Remark:
Foreign body detection	□Need □No need to intercept foreign objects Remark:
Side gauge	□Required □Not required □Requires operation side □Requires transmission side Remark:
Pre-rule	□ Required □ Not required Remark:
Non-stop refilling	□ Required □ Not required Remark:
Pre-stacked paper	□Outside the machine door □The machine moves the door □The machine opens the door No need Remark:
Power and Paper Step	Power source: □From the host □Independent motor Remark: Main engine power output direction: □Same direction as conveying direction □Reverse conveying direction □Refer to drawing Remark: The power connection method of the two machines: □Chain □Timing belt □Shaft drive □Leave the shaft head Remark: Paper Step: □Constant □Stepless adjustment □Single overlapping two steps Remark:
Clutch	□Electromagnetic clutch □Pneumatic clutch No clutch required Remark:
Before the paper arrives, it is adjusted in the morning and evening	□Manual □Automatic □Not required Remark:
Auxiliary configuration	□Static eliminator □Ion blower □Anti-floating cable Remark:
Cover	□ Required □ Not required Remark:
Electrical requirements	□Leave the position for installing the switch (except the necessary switch) □ Just install the switch □ Install the switch and lead the line into the junction box Leaving the motor installation position to provide the motor Remark:
Air requirements (Vacuum pumps, blowers, and air compressors should be equipped by the user and informed of the necessary data related to Jucheng)	□Vacuum pump is turned on at a fixed point □Negative pressure solenoid valve Side blower connected to vacuum pump Side blower with separate blower Side blowing with separate compressed air Remark:
Feeder Color
Other needs
